Find a p2m powermeter for your road bike

You want to upgrade your training and racing with “power” but you do not know which is the best powermeter for you? Just answer the following question:



Which crankset is on your bike?

Shimano

You own a Shimano Dura Ace-, Ultegra- or 105-crankset?

This might seem a challenge from the first sight, but it is not! We help you to find a p2m powermeter for your bike!

Why you need to say “goodbye” to your Shimano cranks if you like to use a power2max NG or NGeco?

Because the original crank-spider and the right crankarm are one piece. However, to combine a crank-spider-based power meter with the right crankarm, the original crank-spider needs to be taken off.
So far, this is not possible with Shimano cranks.


NG or NGeco?

The second question you will have to answer is, if you want to use our flagship the NG powermeter or a lower price is more important for you.



NG Road NGeco Road
Data TransmissionANT+ / BluetoothANT+ / Bluetooth
Precision+/- 1%+/- 2%*
Power SupplyRechargeable battery via USBBattery CR2450
Battery Lifeup to 150hup to 300h
Powermeter FunctionsPowermeter Functions
Poweryesyes
Cadenceyesyes
L/R-BalanceyesUpgrade**
Pedal SmoothnessyesUpgrade**
Warranty2 years*** 2 years***
Pricestarting at 790,00 €starting at 540,00 €

*Optional: 1% for additional 100,00 €
**Upgrade price: 50,00€
***Optional: 5 year warranty for additional 150,00€


The last step to find the best powermeter for your bike!

After you have decided if you want to use the NG or NGeco powermeter you still have to make one final decision: Which new crankset do you want to use? All cranksets fit perfectly into bottom brakets made for Shimano cranksets.

Option 1:
p2m powermeter with a new power2max GranFondo crankset – this is our beginner’s option and probably the most affordable complete dual-sided powermeter/crankset combination on the market. The GranFondo crankset is on the level as Shimano’s 105.

NGeco Road power2max GranFondo Set



Option 2:
p2m powermeter with a new Rotor power2max-Edition crankset – this is our bestseller. The Rotor power2max crankset is on the same level as Shimano’s Ultegra crankset.

NGeco Road Rotor power2max edition set (from 640,00€)
or
NG Road Rotor power2max edition set (from 890,00€)



Option 3:
You don’t want to compromise on your equipment? The Rotor ALDHU24 crankset impresses with its stiffness, weight and workmanship and is on the same level as Shimano’s Dura Ace.

NGeco Rotor ALDHU-R 24 power meter set Road (from 740,00€)
or
NG Rotor ALDHU-R 24 power meter set Road (from 990,00€)



Choose your crankset!

p2m GranFondo Rotor power2max Edition ROTOR ALDHU-R 24
crankarms Aluminum Aluminum Aluminum
Axle Steel Steel Steel
Compatibility Shimano Hollowtech IIShimano Hollowtech IIShimano Hollowtech II
Branding power2max power2maxRotor
Made in TaiwanSpainSpain
Production Methodforgedforged, hollow drilled (3DS)CNC machined, hollow drilled (3DS)
Weight crankset with 172.5mm572g536g500g
Level105105 – UltegraUltegra – Dura Ace
Necessary toolsTorx and allenallen keyallen key
stiffness+++++
Price NGecofrom 540€from 590€from 690€
Price NGfrom 1040€from 1090€from 1190€




Chainrings – Shimano 4-arm or 5-bolt?

Have you found the right powermeter for you? Then the only question left is which chainrings you want to use? The simplest variant for switching from a Shimano crank to a power2max powermeter is our 110 4-S variant. 110 4-S stands for the bolt circle diameter (BCD) 110mm and the 4-arm configuration of the Shimano chainrings. If you choose this variant, you can remove your Shimano chainrings from the old crankset and simply continue to use them on the powermeter!

Alternatively, you can also use 5-bolt chainrings. We offer our power meter both with a bolt circle diameter of 110mm for compact (50/34) and semi-compact chainrings (52/36), as well as the 130mm version for 53/39 and larger chainrings.

If you want to use a 1x drivetrain with only one chainring at the front, then we usually recommend using the 110 variant.

Do you have any questions or do you need help making a decision? Our support team will be happy to assist you.

ROTOR

If you already own a Rotor crankset, you are lucky! A big range of Rotor crankarms are compatible with p2m power meters.
Check the diameter of your spindle and you know which power2max power meter you will need for your bike!


NG or NGeco?

The second question you will have to answer is, if you want to use our flagship the NG powermeter or a lower price is more important for you.



NG Road NGeco Road
Data TransmissionANT+ / BluetoothANT+ / Bluetooth
Precision+/- 1%+/- 2%*
Power SupplyRechargeable battery via USBBattery CR2450
Battery Lifeup to 150hup to 300h
Powermeter FunctionsPowermeter Functions
Poweryesyes
Cadenceyesyes
L/R-BalanceyesUpgrade**
Pedal SmoothnessyesUpgrade**
Warranty2 years*** 2 years***
Pricestarting at 790,00 €starting at 540,00 €

*Optional: 1% for additional 100,00 €
**Upgrade price: 50,00€
***Optional: 5 year warranty for additional 150,00€


Rotor ALDHU, VEGAST with either 24mm or 30mm spindle:

NGeco Rotor ALDHU “spider only”
NG Rotor ALDHU “spider only”

Rotor 3D+, 3D30, 2D = 30mm goes with:

NG Rotor 3D+ “spider only”


If want it all new, you can also choose a NG or NGeco power meter set with new Rotor cranks. You options are:

NG Rotor ALDHU-R 24 powermeter set with new cranks (24mm spindle)
NGeco Rotor ALDHU-R 24 powermeter set with new cranks (24mm spindle)

NGeco Rotor ALDHU3D powermeter set with new cranks (30mm spindle)
NG Rotor ALDHU3D powermeter set with new cranks (30mm spindle)



SRAM

You are riding a SRAM direct mount crankset on your Road-, CX- or Gravel bike? And you want to use a powermeter? You have come to the right place!

But before you can start, we have to find the perfect powermeter for your bike!


NG or NGeco?

The second question you will have to answer is, if you want to use our flagship the NG powermeter or a lower price is more important for you.



NG Road NGeco Road
Data TransmissionANT+ / BluetoothANT+ / Bluetooth
Precision+/- 1%+/- 2%*
Power SupplyRechargeable battery via USBBattery CR2450
Battery Lifeup to 150hup to 300h
Powermeter FunctionsPowermeter Functions
Poweryesyes
Cadenceyesyes
L/R-BalanceyesUpgrade**
Pedal SmoothnessyesUpgrade**
Warranty2 years*** 2 years***
Pricestarting at 790,00 €starting at 540,00 €

*Optional: 1% for additional 100,00 €
**Upgrade price: 50,00€
***Optional: 5 year warranty for additional 150,00€


SRAM Force 1, Force 22, Rival 1 and Rival 22

To check if your crankset is compatible with our powermeters, you need to have a look at the back of the chainring. There should be three screws that connect the chainring onto the right crankarm. If that is the case, you can use one of our powermeters!

NGeco Road SRAM Power Meter (from 540€)

or

NG Road SRAM Power Meter (from 790€)


SRAM Red, Etap and AXS

Unfortunately, the new AXS Road cranksets are a bit more complicated. If you have one of those cranksets our support team will find an individual solution for you.



Specialized

You have got a directmount Specialized crankset models S900 or Fact on your bike?


NG or NGeco?

The second question you will have to answer is, if you want to use our flagship the NG powermeter or a lower price is more important for you.



NG Road NGeco Road
Data TransmissionANT+ / BluetoothANT+ / Bluetooth
Precision+/- 1%+/- 2%*
Power SupplyRechargeable battery via USBBattery CR2450
Battery Lifeup to 150hup to 300h
Powermeter FunctionsPowermeter Functions
Poweryesyes
Cadenceyesyes
L/R-BalanceyesUpgrade**
Pedal SmoothnessyesUpgrade**
Warranty2 years*** 2 years***
Pricestarting at 790,00 €starting at 540,00 €

*Optional: 1% for additional 100,00 €
**Upgrade price: 50,00€
***Optional: 5 year warranty for additional 150,00€


Your choice is easy. You can combine your Specialized crankarms with the following power meter models:

NGeco Specialzed “spider-only”
NG Specialzed “spider-only”

Just take off your original crank-spider and mount the right crankarm to the power meter.

Cannondale

You have got Cannondale Hollowgram or Cannondale SISL directmount crankarms on your bike?


NG or NGeco?

The second question you will have to answer is, if you want to use our flagship the NG powermeter or a lower price is more important for you.



NG Road NGeco Road
Data TransmissionANT+ / BluetoothANT+ / Bluetooth
Precision+/- 1%+/- 2%*
Power SupplyRechargeable battery via USBBattery CR2450
Battery Lifeup to 150hup to 300h
Powermeter FunctionsPowermeter Functions
Poweryesyes
Cadenceyesyes
L/R-BalanceyesUpgrade**
Pedal SmoothnessyesUpgrade**
Warranty2 years*** 2 years***
Pricestarting at 790,00 €starting at 540,00 €

*Optional: 1% for additional 100,00 €
**Upgrade price: 50,00€
***Optional: 5 year warranty for additional 150,00€


You choice for Road bikes is:

NGeco Cannondale “spider-only”
NG Cannondale “Spider-only”

We recommend to check the compatibility of you frame and the NG or NGeco Cannondale power meter with our Support Team!

Campagnolo

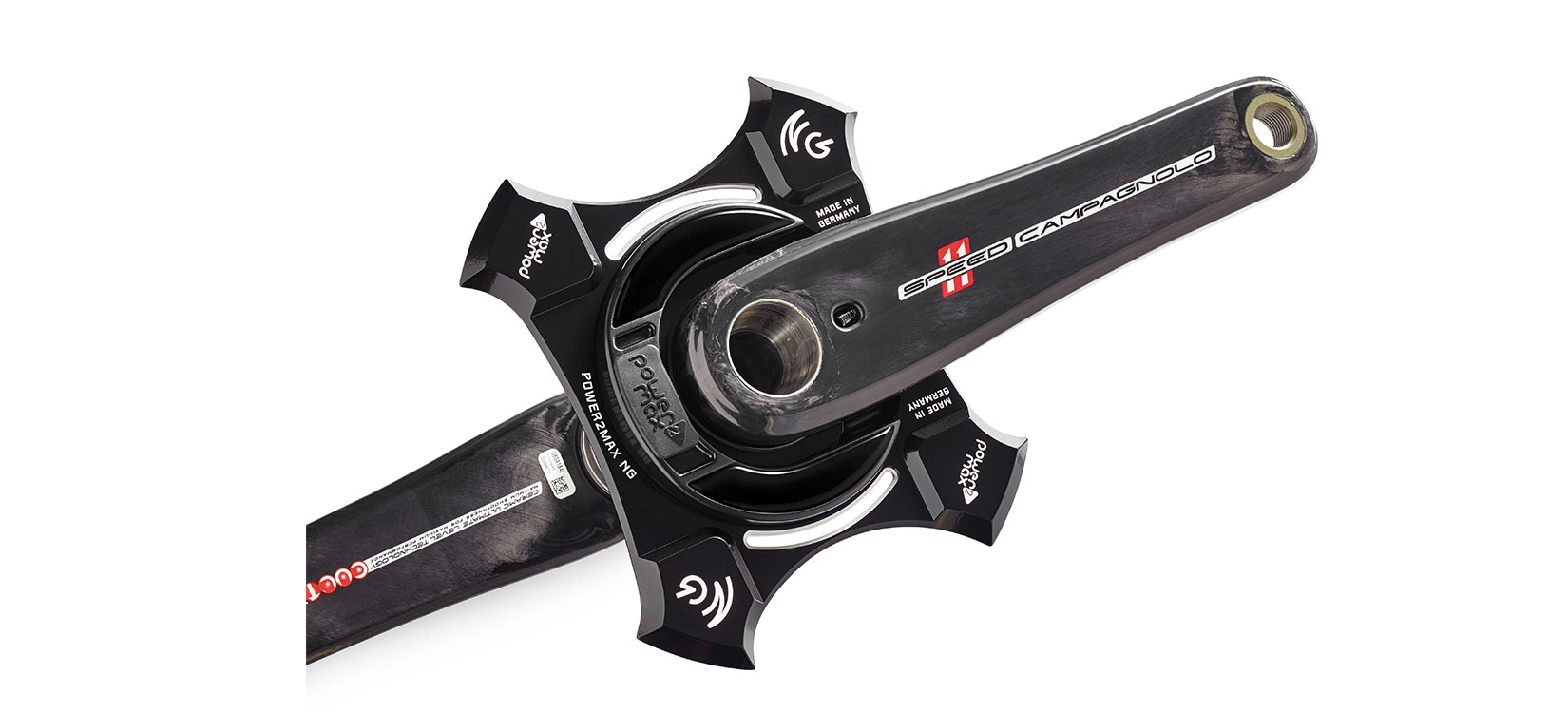

You own a Campagnolo crankset and you want to keep the Campy-look?


NG or NGeco?

The second question you will have to answer is, if you want to use our flagship the NG powermeter or a lower price is more important for you.



NG Road NGeco Road
Data TransmissionANT+ / BluetoothANT+ / Bluetooth
Precision+/- 1%+/- 2%*
Power SupplyRechargeable battery via USBBattery CR2450
Battery Lifeup to 150hup to 300h
Powermeter FunctionsPowermeter Functions
Poweryesyes
Cadenceyesyes
L/R-BalanceyesUpgrade**
Pedal SmoothnessyesUpgrade**
Warranty2 years*** 2 years***
Pricestarting at 1290,00 €starting at 1040,00 €

*Optional: 1% for additional 100,00 €
**Upgrade price: 50,00€
***Optional: 5 year warranty for additional 150,00€


Your choice is the

NGeco Road Campagnolo with crankset 12-speed

or

NG Road Campagnolo with crankset 12-speed

You wonder why you cannot combine the Campy power meter with your current Campy crankarms? The answer is, because the original crank-spider and the right crankarm is one piece. However to mount a power meter, the original crank-spider needed to be taken off. So, Campagnolo developed a special crankset for power2max power meters.

Any questions?

FSA

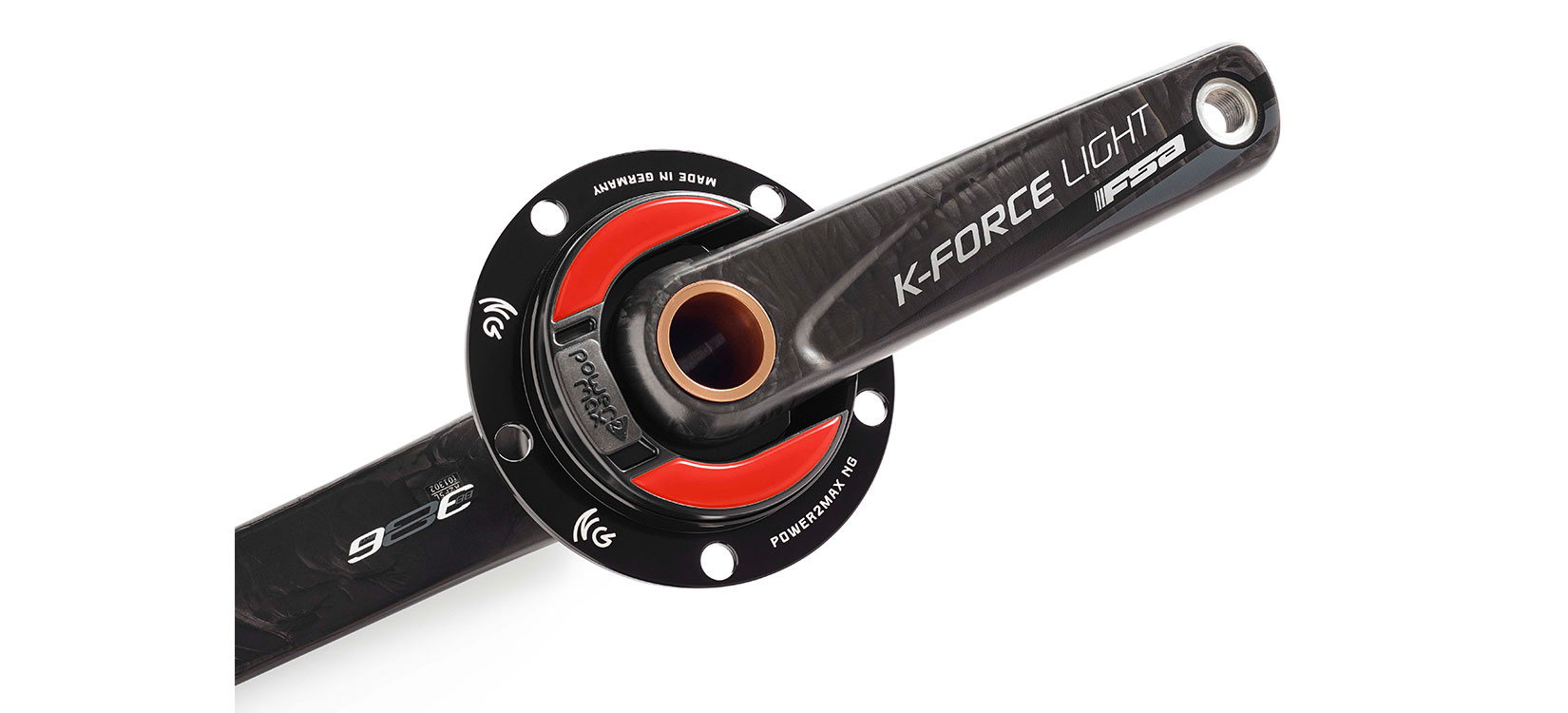

You ride your bike with FSA cranks? Then check the diamter of your spindle and make your choice.


NG or NGeco?

The second question you will have to answer is, if you want to use our flagship the NG powermeter or a lower price is more important for you.



NG Road NGeco Road
Data TransmissionANT+ / BluetoothANT+ / Bluetooth
Precision+/- 1%+/- 2%*
Power SupplyRechargeable battery via USBBattery CR2450
Battery Lifeup to 150hup to 300h
Powermeter FunctionsPowermeter Functions
Poweryesyes
Cadenceyesyes
L/R-BalanceyesUpgrade**
Pedal SmoothnessyesUpgrade**
Warranty2 years*** 2 years***
Pricestarting at 790,00 €starting at 540,00 €

*Optional: 1% for additional 100,00 €
**Upgrade price: 50,00€
***Optional: 5 year warranty for additional 150,00€


Do you have a new FSA modular crankset? We have the perfect powermeter solution for you!

NGeco Road FSA modular powermeter

or

NG Road FSA Modular powermeter


Do you have a non-modular FSA crankset?

You wonder why you keep your current FSA cranks and combine them with the power meter? The answer is, because the original crank-spider and the right crankarm is one piece. To mount a power meter, the original crank-spider needs to be taken off. So, FSA developed special cranks for power2max power meters.

Any questions?

Others


NG or NGeco?

The second question you will have to answer is, if you want to use our flagship the NG powermeter or a lower price is more important for you.



NG Road NGeco Road
Data TransmissionANT+ / BluetoothANT+ / Bluetooth
Precision+/- 1%+/- 2%*
Power SupplyRechargeable battery via USBBattery CR2450
Battery Lifeup to 150hup to 300h
Powermeter FunctionsPowermeter Functions
Poweryesyes
Cadenceyesyes
L/R-BalanceyesUpgrade**
Pedal SmoothnessyesUpgrade**
Warranty2 years*** 2 years***
Pricestarting at 790,00 €starting at 540,00 €

*Optional: 1% for additional 100,00 €
**Upgrade price: 50,00€
***Optional: 5 year warranty for additional 150,00€




power2max road powermeters or powermeters with new cranksets are available for:

Shimano
SRAM
Campagnolo
Rotor
FSA
Easton
Cannondale
Praxis Works
Specialized

If you have a different crankset or not sure which powermeter fits your crankset, please do not hesitate to contact our support team!
