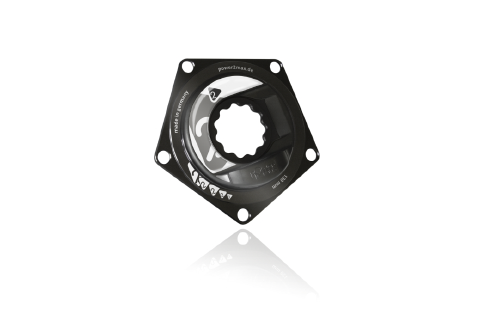

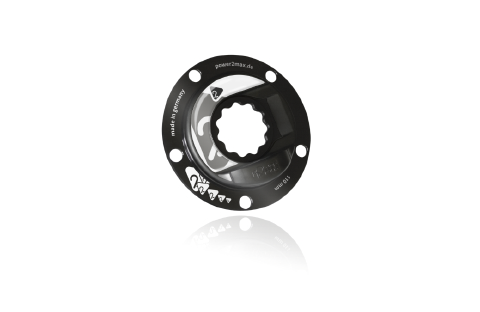

Type S Road Rotor 3D+ power meter

Change model

The Type S Road Rotor 3D+ power meter spider is the power meter for all cyclist who already use a Rotor 3D+-crank set. This powermeter set consists of the power2max Type S powermeter, PraxisWorks chainrings and chainring bolts.

Please make sure to select the correct BCD for your chainrings: 46/36, 50/34 and 52/36 = BCD 110, 53/39 = BCD 130

Configure your powermeter
SALE

Price: 590,00 € 390,00 €

power meter spider Type S Rotor 3D+
i

Compatible option for your selected powermeter: BCD 110

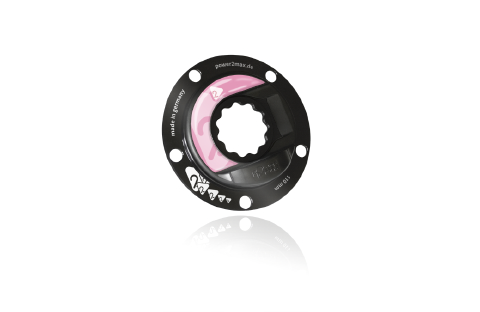

Type S colored ring
i

Please select below:

This item is low in stock. Hurry!

praxis works chainring set
i

Please select below:

This item is low in stock. Hurry!

Rotor chainringbolts long (Road/MTB)
i

Included free of charge

The Type S Road power meter offers you:

  • PRECISION:: +/- 2%
  • DATA TRANSMISSION:: ANT+
  • TEMPERATURE COMPENSATION:: TC
  • POWER SUPPLY:: battery CR 2450
  • BATTERY LIFE IN HOURS:: 400
  • POWER METER METRICS:: power, cadence, L-R balance
  • WARRANTY:: 2 years
  • WATER RESISTENT:: yes

Technical data

  • BCD in mm:
    110, 130
Installation tips
  • A Rotor 3D+ crankset is needed To mount the right crankarm to the powermeter you will need the lockring tool for Rotor 3D+, 3D30, 3DF, 2D and Flow cranks
  • We recommend using Loctite 243 or a different middle strong threadlocker
Downloads
user manual Tightening Torque assembly instructions
